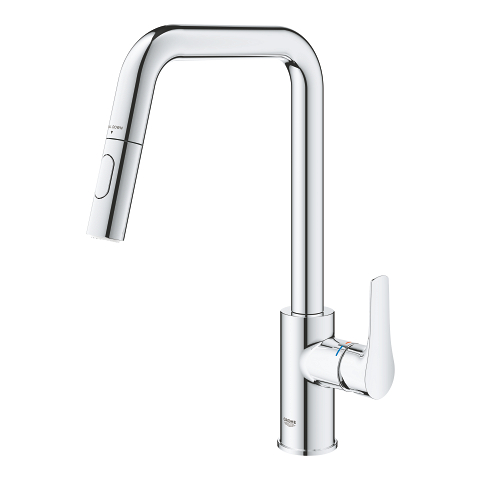

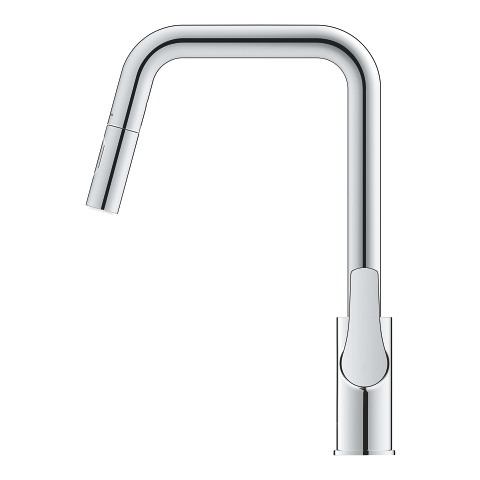

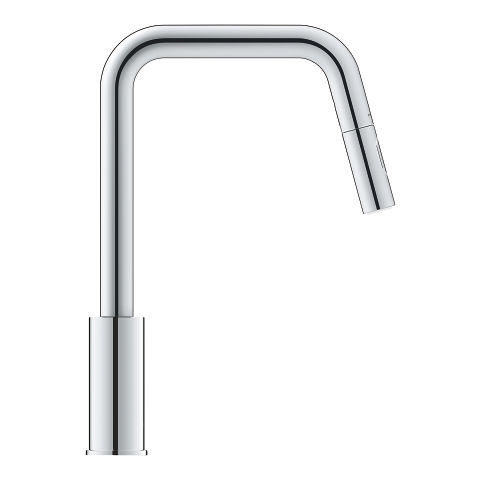

Eurosmart Single-lever sink mixer 1/2″
Key Features
- high spout
- GROHE Long-Life finish
- GROHE SilkMove 28 mm ceramic cartridge
pull-out dual spray - switching between regular flow and spray
- diverter: laminar spray/SpeedClean shower jet
- automatic return to laminar spray
- adjustable flow rate limiter
- swivel cast spout
- swivel area 360°
- Lead and Nickel Free Inner Water Ways
flexible connection hoses
- metal fixation set
- protected against backflow
- maximum flow rate (at 3 bar): 5 l/min
- professional edition
Technical Product Information
CAD Data

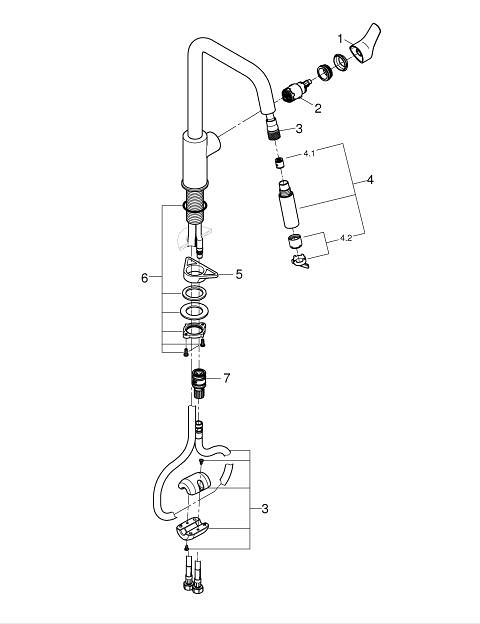

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| 1 | Lever | 48531000 |
| 2 | Cartridge | 46963000 |
| 3 | Hose for sink mixer with pull-out dual spray or mousseur | 48293000 |
| 4 | Hand shower | 48416000 |
| 4.1 | Non-return valve | 08565000 |
| 4.2 | Flow straightener | 48347000 |
| 5 | Support plate | 05334000 |
| 6 | Shank fastening assembly | 48384000 |
| 7 | Quick coupling | 64999000 |
